Products Touch Screen Infrared Touch Screen(IRTS)

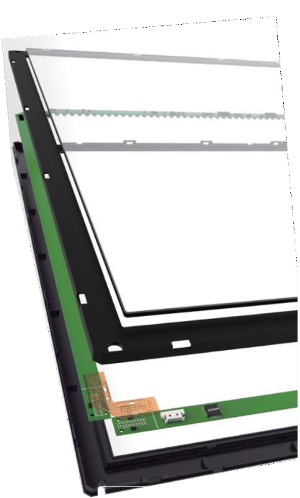

Infrared Touch Screen(IRTS)

Infrared Touch Screen(IRTS)



Features

 Unibody structure with front IP65

Ambient light immunity up to 150,000lux

90-pair LED recognizing 6mm objects

Auto diagnosis

FCC /CE / RoHS

HID* plug & play with 4 touch points (Windows/Android)



Applications



 POS

ATM TVM Kiosk

Self-service machine

Gaming machine

Industrial control

Available Size

15''(4:3), 17''(5:4), 19''(5:4), 18.5”(16:9), 19”(16:10), 21.5''(16:9), 23.6”(16:9

Dimension

18mm width, 7.5mm thickness (with frame, with glass)

Number of Touch Points

1, 2, 4，6，10

Minimum Touch Object

6mm

Touch Activation Force

No minimum touch pressure required

Touch Durability

Unlimited

Resolution

32767*32767

Driver Free

HID* compatible

Touch Accuracy

<1mm

Typical Response Time

3-10ms

Frames per Second

150 fps

Glass

3mm Tempered Glass

Light Transmission

≥90% with glass

Operating Systems

Windows®7, Windows®8, Windows®10, Windows® XP, Mac, Linux & Androi

Protocol

HID

Warranty*

2 years limited warranty on parts and labor

Protection Grade

IP65 (Front)

Power Supply

1.5 meters single USB connection

Low Power Consumption

Operating ≤1W, Standby ≤ 250mW



Per EN61000-4-2:1995; Level 3

ESD

Contact Discharge 6kV



Air Discharge 8kV



4kV on USB connector pins

*HID compatible is available under Windows, Linux and Android OS. For Windows XP and most other platforms that do notsupport multi- touch, a mouse protocol is provided.

*Warranty for S series multi-touch overlay excludes coverage for damage resulting from accident, liquid damage, disassembly, unauthorized service and unauthorized modifications.
